Documentum : DA : LDAP Servers Configuration, dm_LDAPSynchronization job

Hello,

I would like to present in this post, the LDAP servers configuration in Documentum Administrator (DA) and the dm_LDAPSynchronization job.

Creation of LDAP server configuration:

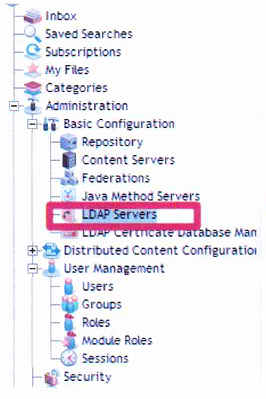

Go to the LDAP Servers node in DA:
Click on the FILE > LDAP Server Configuration menu:
Fill in the informations concerning the LDAP server:
Warning: the name of LDAP Server Configuration must be identical to domain name.

In update mode, the password is necessary in order to modify others informations:
Go on to the Sync & Authentication tab:
Go on to the Mapping tab:
Go on to the Failover tab:

LDAP Synchronisation job : dm_LDAPSynchronization:

Go to the Jobs node in DA:
Go on to the Job Properties:
Go on to the Schedule tab:
Go on to the Method tab:

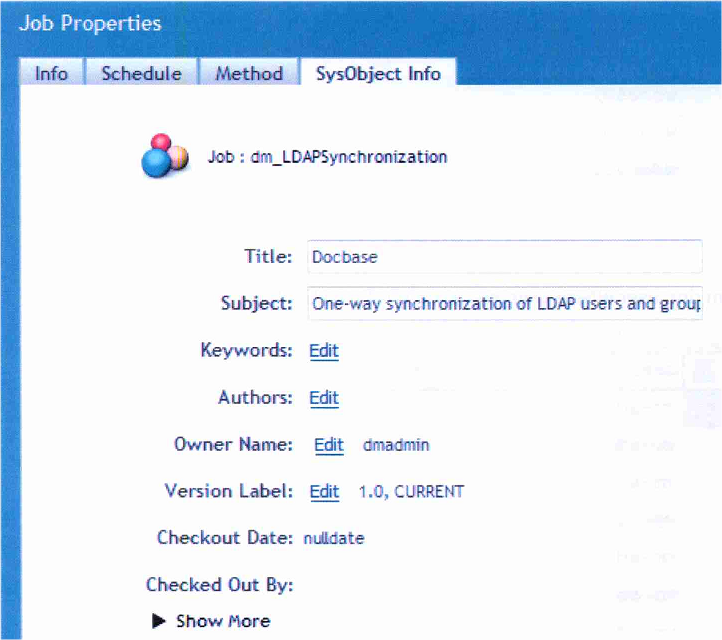

Go on to the SysObject Info tab:

The job dm_LDAPSynchronization creates item of « dm_job_request » type for the jobs :
+ dm_UserRename : « object_name=’UserRename’, job_name=’dm_UserRename’ » to rename users
+ dm_GroupRename : « object_name=’GroupRename’, job_name=’dm_GroupRename’ » to rename groups

DQL: List LDAP being used to authenticate users

Source of Users

view source
print?
1 select distinct user_source from dm_user;
2 --------------
3 user_source
4 --------------
5 LDAP
6 inline password
7 ''

OS Users

view source
print?
01 select user_login_name, user_login_domain from dm_user where user_source = ' ';
02 ------------------------------------------
03 user_login_name | user_login_domain
04 ------------------------------------------
05 DOCUMENTUM |
06 dmadmin | MYDCTMSERVER
07 dm_superusers |
08 dm_superusers_dynamic |
09 dm_browse_all |
10 dm_browse_all_dynamic |
11 dm_retention_managers |
12 dm_retention_users |
13 ...

LDAP Users

view source
print?
01 select user_login_name, user_login_domain from dm_user where user_source = 'LDAP';
02 ------------------------------------------
03 user_login_name | user_login_domain
04 ------------------------------------------
05 myuser1 | my-ad
06 myuser2 | my-ad
07 myuser3 | my-ad
08 myuser4 | my-ad
09 myuser5 | my-ad
10 myuser6 | my-ad
11 ...

Inline Password Users

view source
print?
1 select user_login_name, user_login_domain from dm_user where user_source = 'inline password';
2 ------------------------------------------
3 user_login_name | user_login_domain
4 ------------------------------------------
5 mytestuser1 |
6 mytestuser2 |
7 dmadmin_TEST |
8 testread |
9 ...

Class for correction the user based on the log of dm_LDAPSynchronization job:

001package com.java.lu.business.service.ecm.utils.repair;
002
003import java.io.BufferedReader;
004import java.io.IOException;
005import java.io.InputStream;
006import java.io.InputStreamReader;
007import java.io.PrintWriter;
008import java.text.MessageFormat;
009import java.util.Calendar;
010import java.util.Map;
011import java.util.Map.Entry;
012import java.util.TreeMap;
013import java.util.regex.Matcher;
014import java.util.regex.Pattern;
015
016import org.apache.commons.lang.StringUtils;
017
018import com.documentum.com.DfClientX;
019import com.documentum.com.IDfClientX;
020import com.documentum.fc.client.DfAuthenticationException;
021import com.documentum.fc.client.DfIdentityException;
022import com.documentum.fc.client.DfPrincipalException;
023import com.documentum.fc.client.DfQuery;
024import com.documentum.fc.client.DfServiceException;
025import com.documentum.fc.client.IDfClient;
026import com.documentum.fc.client.IDfDocbaseMap;
027import com.documentum.fc.client.IDfDocument;
028import com.documentum.fc.client.IDfQuery;
029import com.documentum.fc.client.IDfSession;
030import com.documentum.fc.client.IDfSessionManager;
031import com.documentum.fc.client.IDfUser;
032import com.documentum.fc.common.DfException;
033import com.documentum.fc.common.DfLoginInfo;
034
035public class CorrectLDAP {
036
037    private static class User {
038        final private String cn;
039        private String username;
040        private String uniqueId;
041        private boolean readUserName;
042        private boolean readUniqueId;
043
044        public User(String cn) {
045            this.cn = cn;
046        }
047
048        public void setUsername(String username) {
049            this.username = username;
050        }
051
052        public void setUniqueId(String uniqueId) {
053            this.uniqueId = uniqueId;
054        }
055
056        @Override
057        public String toString() {
058            return MessageFormat.format("userName:{0} - uniqueId:{1} - cn:{2}", username, uniqueId, cn);
059        }
060    }
061
062    private final static Pattern CN_NAME_PATTERN = Pattern.compile("User DN: (.*)$");
063    private final static Pattern UNIQUE_ID_PATTERN = Pattern.compile("--Unique Id--:$");
064    private final static Pattern UNIQUE_ID_SPLITER = Pattern.compile("([^:]*):([a-f0-9]{32})");
065    private final static Pattern USER_NAME_PATTERN = Pattern.compile("sAMAccountName:$");
066    private final static Pattern VALUE_PATTERN = Pattern.compile("\\t\\t(.*)$");
067    private final static Pattern END_PATTERN = Pattern.compile(" [-*]{81}$");
068
069    private User currentUser;
070
071    Map<String, User> map = new TreeMap<>();
072
073    public void processLine(String line) {
074        Matcher matcher;
075        if ((matcher = CN_NAME_PATTERN.matcher(line)).find()) {
076            String cn = matcher.group(1);
077            if (!map.containsKey(cn)) {
078                currentUser = new User(cn);
079            }
080        } else if (currentUser != null) {
081            if ((matcher = END_PATTERN.matcher(line)).find()) {
082                if (!map.containsKey(currentUser.cn)) {
083                    map.put(currentUser.cn, currentUser);
084                    currentUser = null;
085                }
086            } else {
087                if ((matcher = USER_NAME_PATTERN.matcher(line)).find()) {
088                    currentUser.readUserName = true;
089                } else if ((matcher = UNIQUE_ID_PATTERN.matcher(line)).find()) {
090                    currentUser.readUniqueId = true;
091                } else if (currentUser.readUserName) {
092                    currentUser.readUserName = false;
093                    if ((matcher = VALUE_PATTERN.matcher(line)).find()) {
094                        currentUser.setUsername(matcher.group(1));
095                    } else {
096                        printWriter.println(MessageFormat.format("#Unable to retrieve UserName for {0} : ''{1}''", currentUser.cn, line));
097                    }
098                } else if (currentUser.readUniqueId) {
099                    currentUser.readUniqueId = false;
100                    if ((matcher = VALUE_PATTERN.matcher(line)).find()) {
101                        currentUser.setUniqueId(matcher.group(1));
102                    } else {
103                        printWriter.println(MessageFormat.format("#Unable to retrieve UniqueId for {0} : ''{1}''", currentUser.cn, line));
104                    }
105                }
106            }
107        }
108    }
109
110    public void printTable() {
111        int i = 0;
112        for (Entry<String, User> entry : map.entrySet()) {
113            printWriter.println(MessageFormat.format("{0,number,00000} - {1}", ++i, entry.getValue()));
114        }
115    }
116
117    private final IDfClientX clientx;
118    private final IDfClient client;
119    private IDfSessionManager sMgr;
120    private PrintWriter printWriter;
121
122    private CorrectLDAP() throws DfException {
123        this.clientx = new DfClientX();
124        this.client = clientx.getLocalClient();
125    }
126
127    public CorrectLDAP(String username, String password) throws DfException {
128        this();
129        IDfSessionManager sMgr = client.newSessionManager();
130        sMgr.setIdentity(IDfSessionManager.ALL_DOCBASES, new DfLoginInfo(username, password));
131        this.sMgr = sMgr;
132        this.printWriter = new PrintWriter(System.out);
133    }
134
135    public CorrectLDAP(IDfSessionManager sMgr, PrintWriter printWriter) throws DfException {
136        this();
137        this.sMgr = sMgr;
138        this.printWriter = printWriter;
139    }
140
141    public static void main(String[] args) throws IOException, DfException {
142        CorrectLDAP correctLDAP = new CorrectLDAP(args[0], args[1]);
